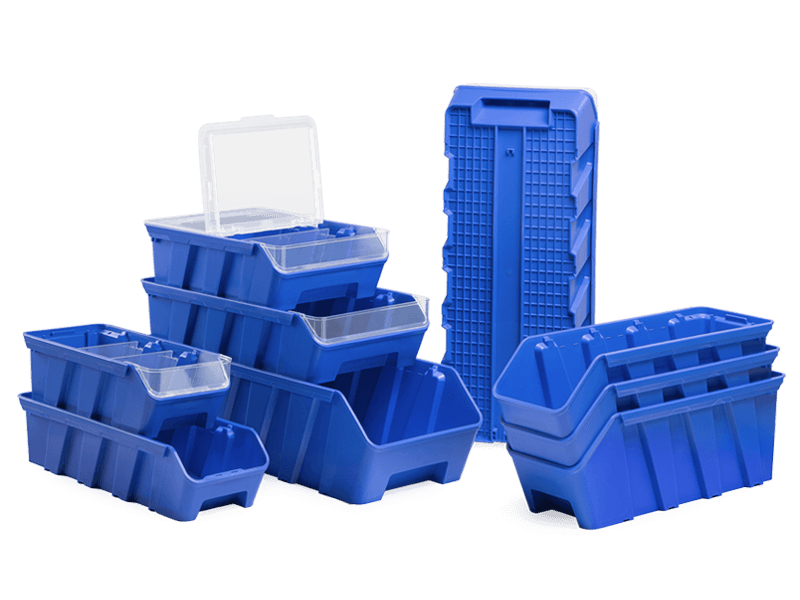

Space-saving bins for racks RK Box Air
The RK Box Air rack bins are innovative solutions for the safekeeping and storage of a wide range of components. The unique design was created to be able to stack the various containers in total safety and to be able to nest them one inside the other, resulting in a notable saving of space.
Stackable and nestable with a 50% recovery of space when empty
Reinforced bottom and large front opening
Can be stored on shelving and in cabinets
| Size | Overall dim. (mm) | Useful dim. (mm) | Volume (l) | Load capacity (Kg) |
|---|---|---|---|---|
| 3014 | 141 x 300 x 91 | 102 x 248 x 79 | 2,4 | 4 |
| 3021 | 214 x 305 x 91 | 176 x 245 x 79 | 4 | 7 |
| 3114 | 141 x 305 x 142 | 100 x 234 x 130 | 3,8 | 6 |
| 3121 | 214 x 305 x 142 | 174 x 234 x 130 | 6,5 | 11 |
| 4014 | 141 x 400 x 91 | 102 x 348 x 79 | 3,4 | 6 |
| 4021 | 214 x 400 x 91 | 176 x 345 x 79 | 5,8 | 10 |
| 4114 | 141 x 400 x 142 | 100 x 334 x 130 | 5,2 | 9 |
| 4121 | 214 x 400 x 142 | 174 x 334 x 130 | 9,1 | 15 |
| 5014 | 141 x 495 x 91 | 102 x 448 x 79 | 4,3 | 7 |
| 5021 | 214 x 495 x 91 | 176 x 445 x 79 | 7,4 | 13 |
| 5114 | 141 x 495 x 142 | 100 x 434 x 130 | 6,8 | 11 |
| 5121 | 214 x 495 x 142 | 174 x 434 x 130 | 12 | 20 |
Space-saving bins for racks RK Box Air: benefits and features
The large front opening makes it easier to remove the material, while the reinforced bottom has a special central groove which, used in combination with the shelf guide, transforms the bin into an actual drawer with an opening and closing lock.
The reinforced edges and bottom prevent deformation and strengthen the structure of the RK Box Air bins for containing heavy loads.
Rack bins are characterised by:
1. Reinforced edges
2. Handle
3. Stacking inserts
4. Conical shape to facilitate nesting the bins one inside the other
5. Structural reinforcement for installing transversal dividers
6. Lid hook
7. Set up for front panel
The patented inserts ensure a firm and safe stacking of the various RK Box Air bins and distribute the weight evenly. RK Box Air bins can go from stacking to being nested one inside the other with a simple hand movement.
The accessories for dividing and protecting the contents are made of transparent polystyrene to ensure maximum visibility and immediate identification of the stored materials.
Front panel
The transparent front panel closes the front opening of the RK Box Air without blocking the view of the contents. The particular design adapts perfectly to the shape of the bin, inserting with a click. It can be used in combination with the lid to completely close the container.
Divider
The transversal divider splits the internal space of the RK Box Air into several compartments for storing components of a different nature. It is transparent to allow viewing all the material and fits perfectly into the side reinforcements without taking up space.
Lid
The RK Box Air lid is interlocked on the upper part of the bin and has a partial or total opening. Its transparency makes the contents always visible and it can be used in combination with the front panel for fully protecting the contents of the RK Box Air.
The unique design of the RK Box Air bins allows them to be stored neatly and safely not only on shelving or in cabinets, but also in dedicated single-piece racks.
Regardless of their location, we recommend installing a rear anti-tipping stop to maximise safety during picking operations. This component blocks the RK Box Air bins from sliding out of their housing and prevents them from falling.
