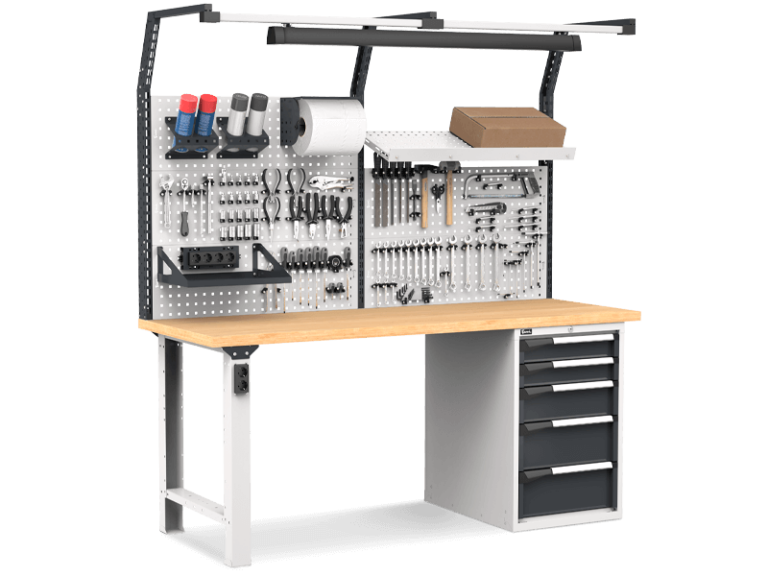

Master professional workbench
Master is a professional workbench that adds the flexibility and high load capacity of Master drawers to the stable and sturdy frame, typical of Fami workbenches. This results in a highly professional workstation that can be customised with a wide range of components, such as cabinets with drawers, a door, with power connections, or a clamp and perforated tool panels for accessories and hooks.
Fixed, height-adjustable or with wheels
Master drawers with flexible or telescopic extraction (load-bearing capacity from 50 kg to 200 kg)
Configurable cabinet with drawers, door, cabinets with clamp or power connections
| Width (mm) | Depth (mm) | Height (mm) * |
|---|---|---|
| 1300 | 750/800 | 890, 765/1115, 921/1271 |
| 1500 | 750/800 | 890, 765/1115, 921/1271 |
| 2000 | 750/800 | 890, 765/1115, 921/1271 |
| 2500 | 750/800 | 890, 765/1115, 921/1271 |
| 3000 | 750/800 | 890, 765/1115, 921/1271 |
* Size varies depending on the leg (fixed, adjustable, with wheels)
Professional workbenches available with Master series drawers and/or tool walls: benefits and features
The beech multiplex worktop offers strength and resistance, ensuring a stable and solid surface, perfect for heavy and precision operations. It is resistant to scratches, impacts and other forms of wear and has a thickness of 40 mm.
The worktop can be protected with an optional rubberised steel cover if acids and oil are used or for heavy-duty machining.
Master is workbench that can be customised with suspended drawers or used as a support for the worktop. The cabinets used as a worktop support only have drawers, or door and drawer, while suspended modules are available in different versions: from the simplest versions with drawers or door and adjustable shelf, to more functional versions with a workbench vice and cabinet with winders for electrical cables and compressed air.
The cabinet with vice is an innovative solution that features a tilting mechanism to easily and effortlessly pull out and put back the vice. This component also includes a handy concealed door with a cylinder lock to safely store and organise your equipment.
The connection cabinet is a functional component for organising electrical cables and compressed air pipes. Equipped with a rear plate for attaching a reel, it has notches on the front for a reel winder and 2- and 4-socket power strips. This cabinet is an efficient solution for keeping technical connections in order, optimising space and improving operational safety.
The drawer unit for the professional workbench features Master drawers that can be fitted internally with 5S Pikpad tool trays and/or dividing material such as partitions and trays thanks to the perforated bottom and slotted edges. The specific conformation of the cabinet, complete with vertebrate anti-tipping rod, allows the use of two types of drawer guides to choose between flexible or telescopic-extension versions. With telescopic extraction, it is possible to fully open the drawer providing a complete view of the contents and a 200 kg load capacity. Flexible extraction, on the other hand, allows the operator to decide how far to pull out each drawer and, as a result, its load capacity. In particular:
100% extraction: 50 kg load-bearing capacity
96% extraction: 75 kg load-bearing capacity
92% extraction: 100 kg load-bearing capacity
100% extraction: 200 kg load-bearing capacity
The different layouts of the Master workbench can be customised starting with the base for the worktop, which can be on fixed legs, legs preconfigured for extensions and wheels, a cabinet with drawers or door, or a combination of legs and cabinet.
The Master workbench legs are all equipped with a hole on one side closed by a cap. By removing the cap, it is possible to insert a 2-socket power strip with its connection cable to provide the bench with a practical source of electricity. The cable passes inside the leg, which is hollow, keeping the workstation tidy and free from visible wires.
Depending on the leg’s position, the hole can be located at the front or at the rear of the workbench, ensuring a flexible installation.
The handle makes it easy to move the workbench with wheels, offering a secure grip and optimal control during handling.
The wheels transform the Master workbenches into practical mobile workstations. They are available in synthetic non-marking rubber or elastic rubber and can be fixed, swivel or swivel with brake.
In addition to the cabinets and drawers, the Master steel bench can be upgraded with the wide range of components and accessories for Fami workbenches, designed and produced for the optimal organisation of the most frequently used equipment and material. The Work Look panel with square holes, for example, can be used as a shelf or wall on which to quickly and easily attach Unipok hooks for perforated panels and Iron Team toolholder accessories.
