Master industrial chest of drawers

The Master tool chest of drawers, combining technology and design, is studied for being fully customised for the efficient and tidy organisation of tools, materials and documents in numerous work environments.

Master industrial chest of drawers

Reasons for choosing it

Extraction and load-bearing capacities can be autonomously set

Segmented anti-tilt bar

Highly safe anti-tampering closing system


Master industrial chest of drawers: benefits and features

Free to configure

Thanks to an innovative, plain extension guide, the drawer rear stop can be mechanically adjusted in three different positions, obtaining 3 different capacities. A new telescopic guide can be fitted to the drawer to reach a capacity as high as 200 kg. The front bearing has been moved beyond the front of the drawer and there is no shadow cone in taller drawers – even when these are adjusted to a 100 kg capacity. All this results in a marked improvement in the drawer per-cent extension and drawer volume use.
The patented opening system allows the user to easily customise extension and load capacity.

200 kg
Extraction 100 %
Extraction %96
Extraction 92 %
Safety first of all

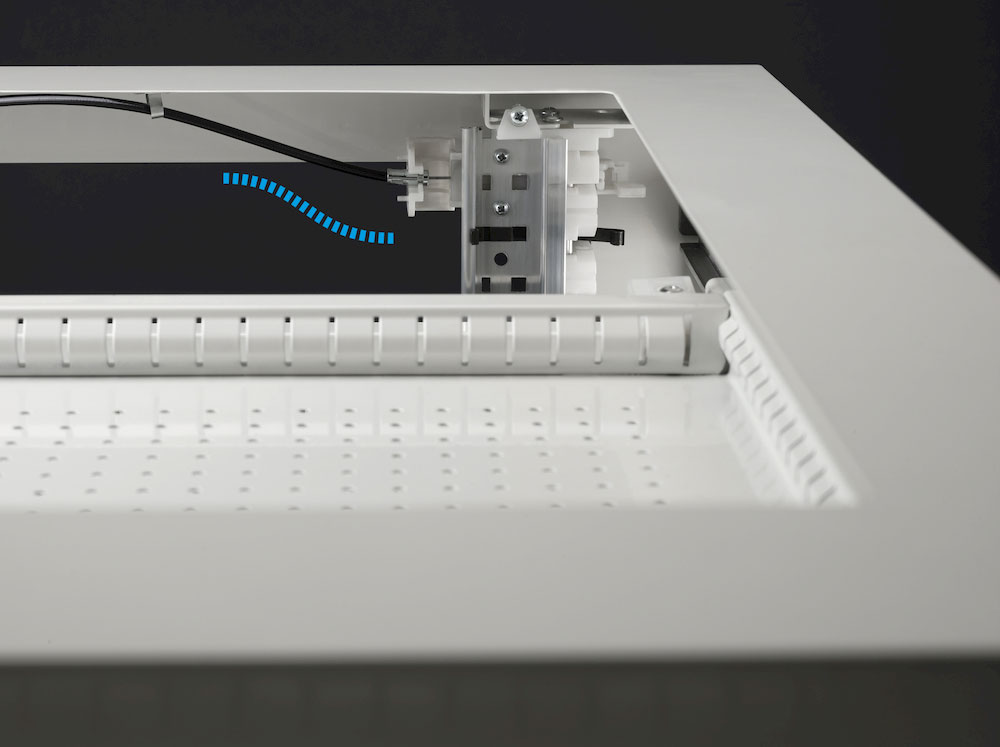

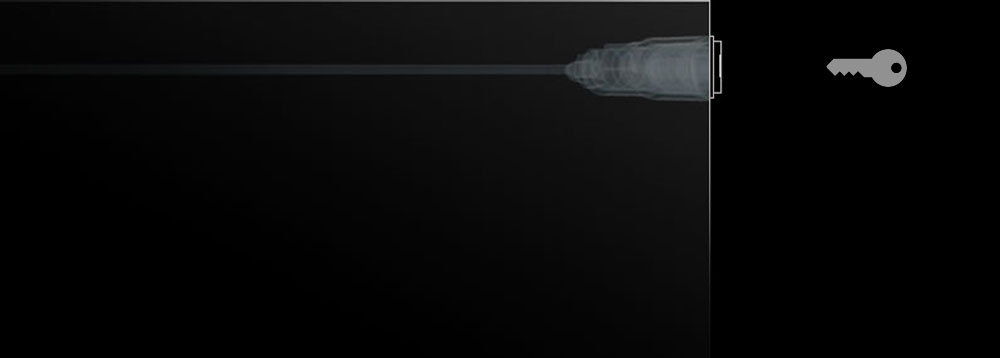

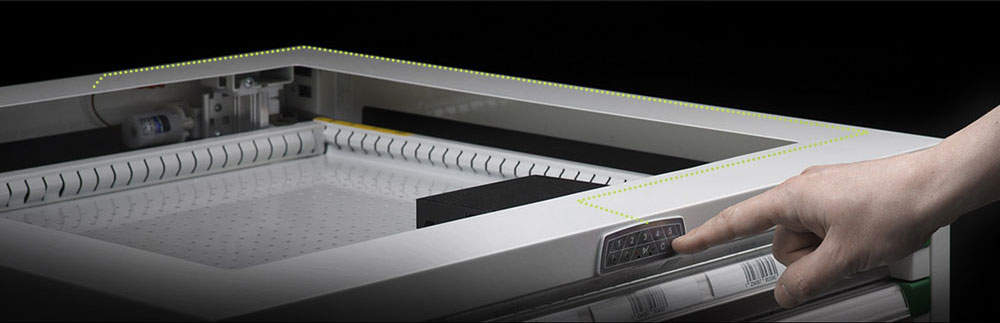

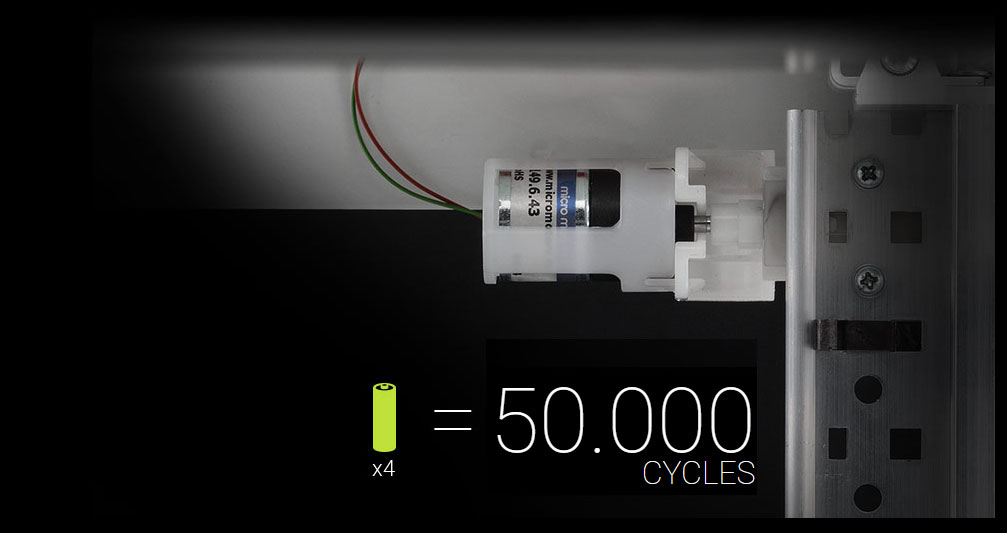

The Master tool chest of drawers has a cylinder-type closure, equipped with a push-to-open system that integrates the individual opening mechanism of the drawers directly in the cylinder, and an electronic system with numerical keypad. Unlike other cabinets currently on the market, the patented closure system prevents thieves from by-passing the closure. Any forced opening will always be visible.

Cylinder-type closure
Cylinder-type closure
Cylinder-type closure
Organisation down to the millimetre

Holes and slots on the drawers make it easier to add internal dividers for optimally arranging tools and materials. With the Fami Storage Systems accessories for tool drawers – including longitudinal, slotted, transversal and channel dividers, or plastic drawer trays for smallwares – the drawer space can be divided based on the contents to be stored. Each drawer can be lined with non-slip rubber or foam rubber mats.

Dividing material
Dividing material
Dividing material
Dividing material
5S Pikpad tool tray
The system’s heart and brains

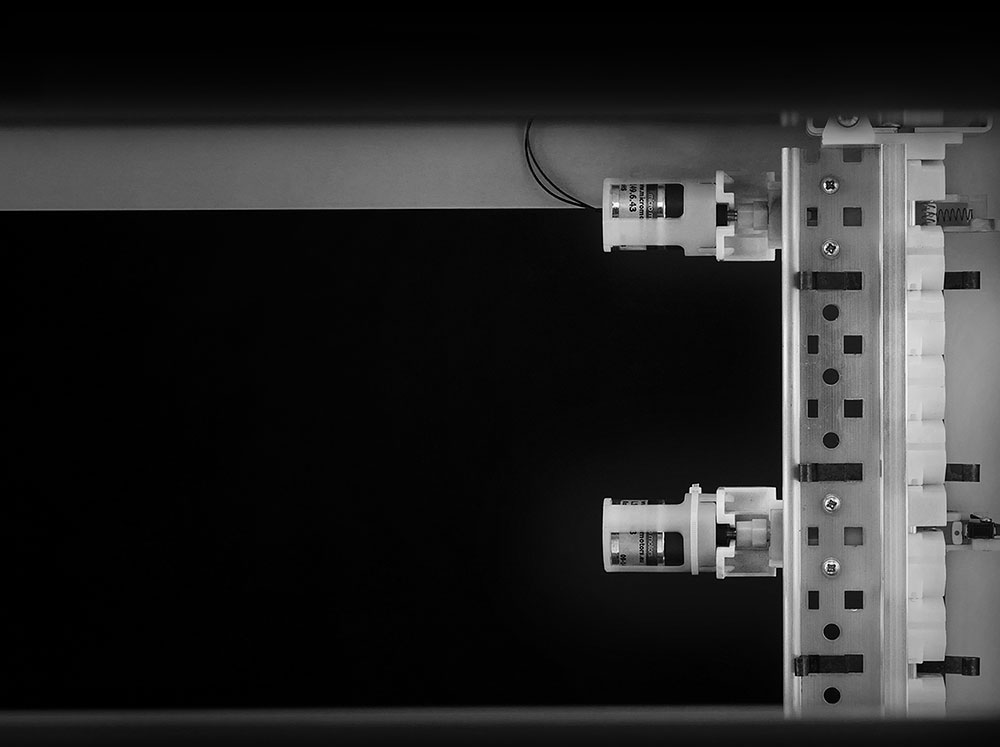

The bar is an aluminium profile section that is always fixed and never rotates. The closing movement is obtained via blocks that move vertically - driven by one of the basic forces of physics: gravity. The lighter the workload, the longer the component life.
The bar has 25 mm pitch holes - allowing for a number of closure heads to be fitted. This allows access to drawers to be split into multiple groups. The division into groups is configurable in height.

Antitilt bar
Sturdy and durable

The installation of a worktop makes the top of the Master tool cabinet sturdier and more robust for performing maintenance and other work. The tool cabinets with drawers can be fitted with 4 different types of tops:

Stainless steel top

Stainless steel top

Multiplex top

Multiplex top

Rubber lined steel top

Rubber lined steel top

3 edge top shelf coated with PVC

3 edge top shelf coated with PVC

Protecting the contents

The Master chests of drawers can be configured with hinged, sliding and shutter doors, all equipped with a cylinder-type opening. The hinged doors are also available in the version with numerical keypad closure and can be full-height – equal to the size of the cabinet – or partial-height, for closing only one area of the chest of drawers.

Sliding doors
Hinged doors
A wealth of information

Add barcodes, label or images to handles for quick identification of the contents of each individual drawer.

The innovations that simplify identification of the contents of the drawers.

With Sylogik® Syfront technology, the drawer front is no longer just a closing element but becomes an actual visual interface.
• Customisation with aesthetic and decorative elements
• User inputt: labels to describe and catalogue the contents
• User outputt: ability to insert visual or descriptive messages on the handle

Customisable handles 1
Customisable handles 2
Customisable handles 3
Movement and protection

The Master tool cabinet can be fitted with two different types of bases to raise it off the floor and allow it to be moved with forklift trucks and pallet trucks. Both allow the height of the tool cabinet to be increased to adapt it to the dimensions of other furniture and to improve work comfort. The bases for forklift trucks and pallet trucks also make it easier to move the industrial cabinet around inside the premises. Available as a single base or in pairs, they can be blocked off with closure elements to prevent the build-up of dirt and give a more uniform look to the cabinet.

Base for forklift and pallet truck
Pair of bases for forklift and pallet truck
Riser base H=50 mm

Width408 mm (18 EH)561 mm (27 EH)714 mm (36 EH)867 mm (45 EH)1020 mm (54 EH)1190 mm (64 EH)1428 mm (78 EH)
Depth573 mm (27 EH)573 mm (27 EH)726 mm (36 EH)573 mm (27 EH)726 mm (36 EH)726 mm (36 EH)573 mm (27 EH)726 mm (36 EH)726 mm (36 EH)726 mm (36 EH)
Height200 mm
300 mm
400 mm
600 mm
700 mm
800 mm
850 mm
1000 mm
1022 mm
1500 mm
2000 mm
